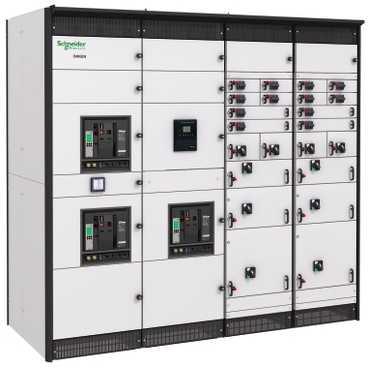

Main Distribution Board is a panel from where electrical energy is taken out to distribute power to various consumer points. It typically has a single or multiple incoming power sources and includes circuit breakers and protection devices. MDB then feeds SMDBs, which is installed generally at the point where a large distribution cable terminates and several smaller sub-circuits start. The SMDB feeds the Final Distribution Board, which then feeds electrical energy to the end user.
Type tested and compliant with IEC 61439-1 by using CUBIC Modulsystem.
| SPECIFICATION: | |||
| Type | : | CUBIC Modulsystem | |
| Rated Operational Current (Ie) | : | Busbar Maximum 6300A ; configuration maximum 5320A | |
| Rated Insulation voltage (Ui) | : | Maximum 1000V depends on the used electrical components | |
| Rated Operational voltage (Ue) | : | Maximum 1000V depends on the used electrical components | |
| Rated Frequency | : | 50 Hz | |
| Degree of Protection | : | Up to IP54, Enclosure ; Up to IP30 with shutter (internal) ; Up to IP20 without shutter (internal) | |
| Internal Separation | : | Form 3b or Form 4b | |
| Standard and Approval | : | IEC / EN 61439-1 |
